Concealed fan complete set 125 mm
including fan. 125 mm

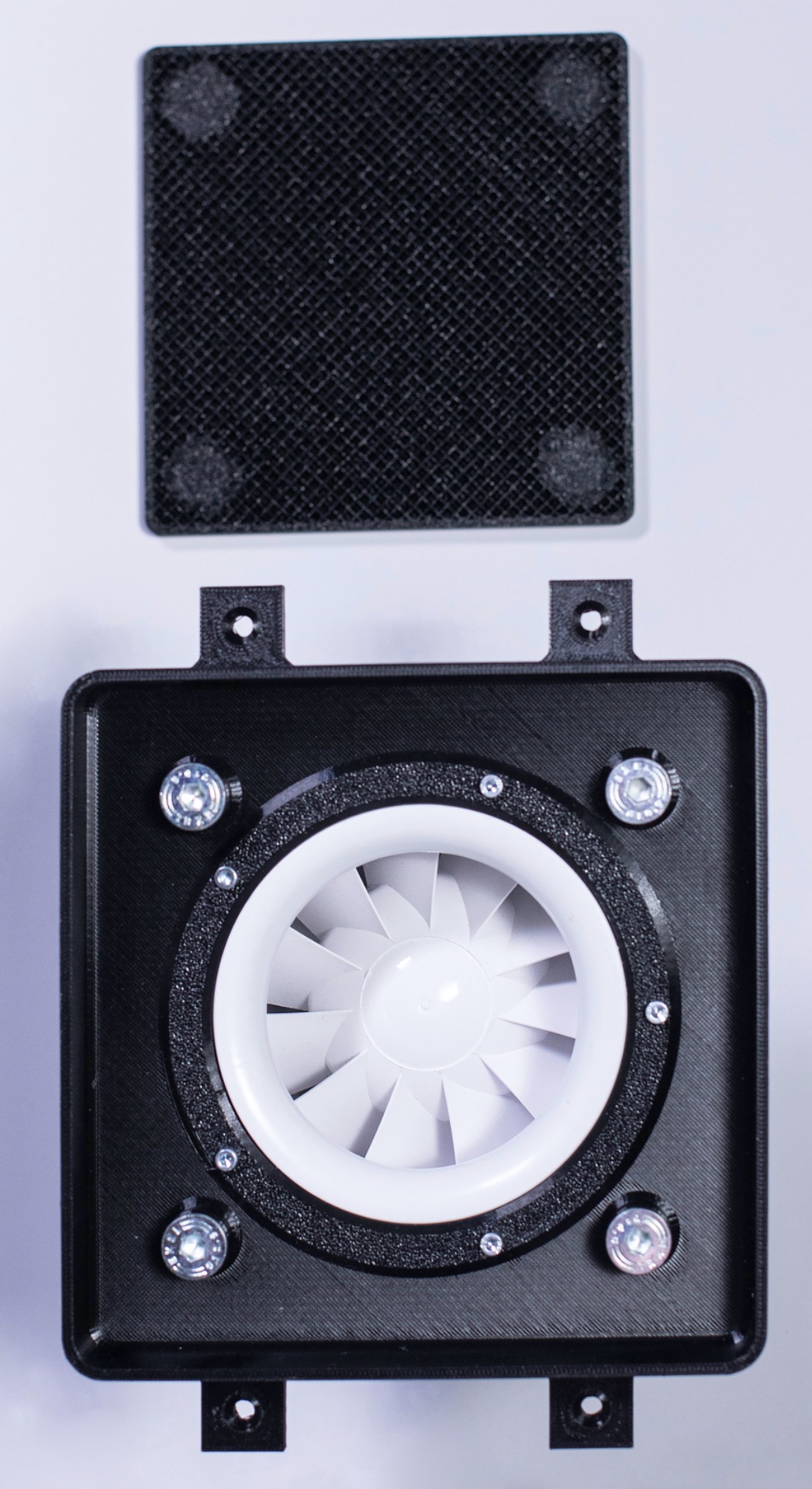

Our product is a concealed installation system that discreetly replaces the classic duct fan in your bathroom or toilet. No more visible plastic covers.
There is only a visible, unobtrusive gap in the tile for air flow.
In case of access or maintenance, the middle part is removable.
The fan supplied in the set has a solid ball bearing, which allows for wall and ceiling mounting.
It also has a timer.
This product intended for concealed installation can be ordered with a fan diameter of 100 mm, 125 mm.
Package contents:
2 main plastic parts

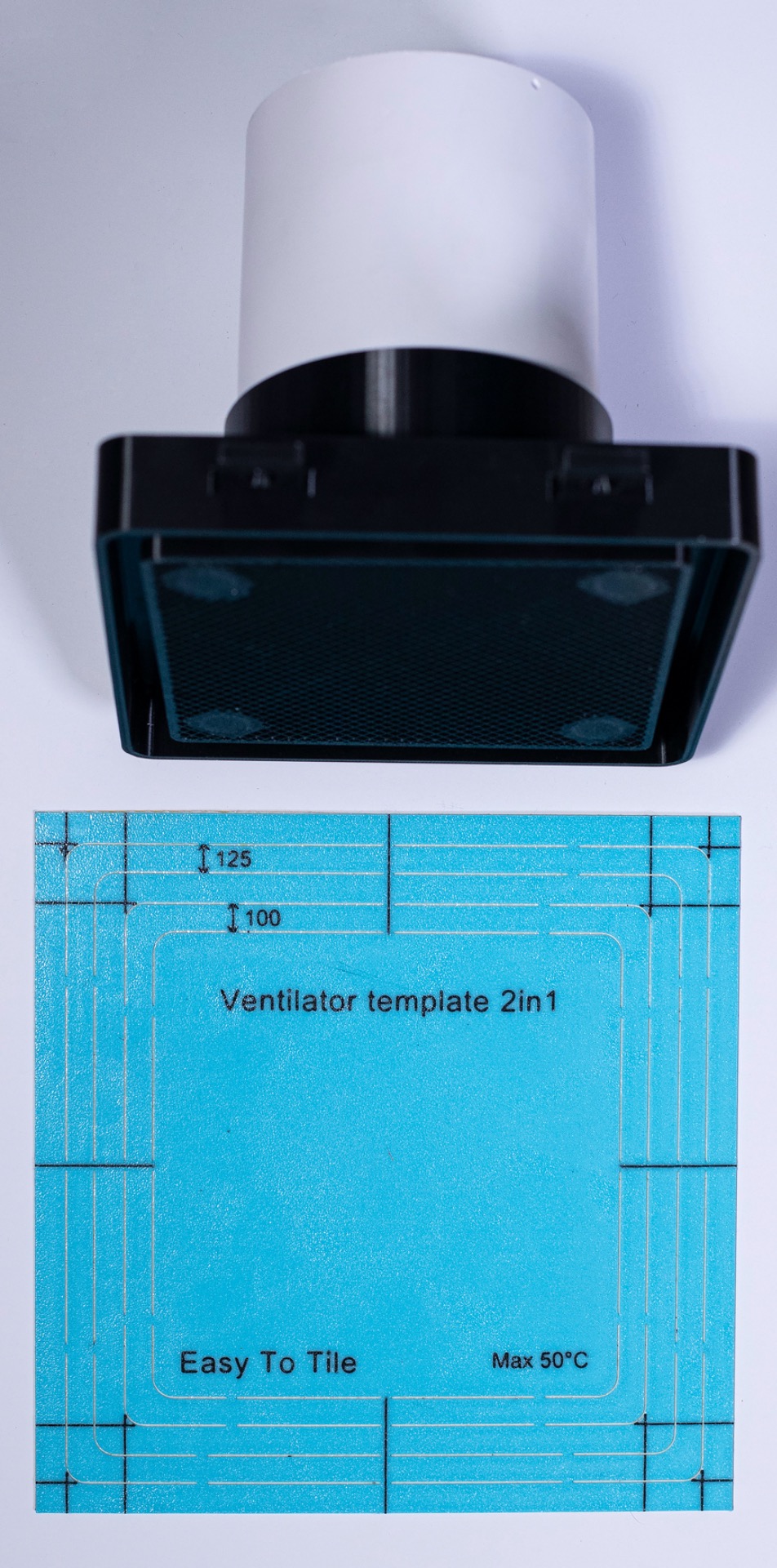

self-adhesive template for easy cutting
screws and nuts for fixing the fan
product made of: Pet-G
4 neodymium magnets
4 pcs of screws,
Fan 125mm
Fan Description:
A duct fan with higher power, a timer (2 to 30 minutes) and ball bearings Ø 125 mm is designed to extract air from residential and non-residential spaces, such as kitchens, bathrooms, toilets, small offices, etc. This fan is fully compatible with our ducts and flanged grilles. The fan is equipped with ball bearings, the service life is higher 40,000 hours, compared to 5,000 hours for sliding ones.
Parameters and specifications
Diameter [mm] 125
Air flow [m³/hour] 245
Static pressure [Pa] 57
Power [W] 24
Speed [min] 2400
Nominal current [A] 0.105
Acoustic noise [dB/3m] 39
Protection degree [IP] X4
Voltage [V] 230
Frequency [Hz] 50
Max temperature [°C] +1 to +40
Weight [kg] 0.52
Use office, bathroom, toilet, cellar
Ball bearings YES
Color white
Timer/switch YES
Certification mark [CE] CE
Use for air extraction
Installation in air duct
Lifespan 40,000 hours
Higher performance YES
Fan design axial
Model 125 SDZ
